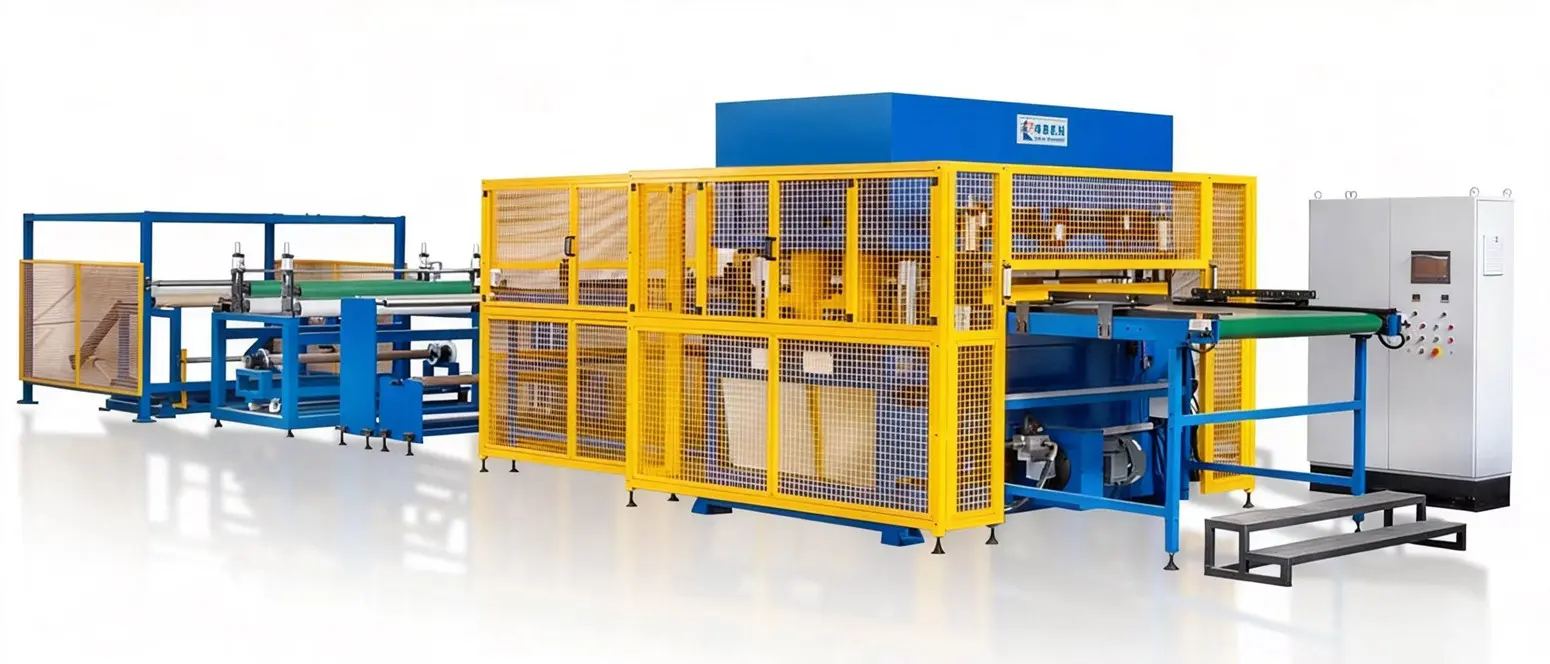

China Thinsulate Heat Seal Cutting Machine for Sound Insulation Materials - Trusted Suppliers & Factory Solutions
heat seal cutting machine product description
Kuntai Groupheat seal cutting machine Available Feeding Methods
Kuntai GroupAccessories Option
High-quality components for enhanced productivity
Unwinder
Spray Device
Scatter Device
Pressing Device
Rewinder Device
Double Stand Winder
Accumulator
Coating System
Center Unwinder
Surface Rewinder
heat seal cutting Machine Features
Kuntai Group
- ● Specially designed device for cutting moulds on the upper board is optional, making it convenient to change cutting moulds.
- ● Double connecting rod balance and hydraulic drive. All moving parts have auto lubricating system, prolonging the machine service life and enhancing cutting precision.
- ● Specially designed oil pressure system. The upper board lowers fast depending on its own heavy and when it is near the material, it will slow down, keeping the specs of the upper side and the lower side of the materials the same.
- ● Flywheel energy storage tech helps realize high pressure cutting, saving power. The oil temp will not rise.
- ● Stroke setting mechanism can easily and precisely set the cutting height according to different cutting moulds.
- ● After high frequency quenching, the excircle surface of cylinder rod will be hard chrome plated, prolonging the service life of the machine.
- ● The hydraulic system adopts auto oil adding speed enhancing cylinder. When working, it lowers rapidly and the hydraulic pump is in the state of unloading. It produces less heat and can work continuously for a long time. This is Germany tech and we learnt it after German engineers. Other factories even do not know this tech.
- ● Optional: Driven by servo motor, synchronous belt transmission device feeds the material and the feeding length can be input by the touch screen.
- ● The machine has memory function. For the cutting moulds, the material feeding data can be stored and recalled. In future, just input the cutting mould serial number, the machine will recall previous data and work accordingly.
heat seal cutting machine Technical Parameters (Customizable)
Kuntai Group| Max Cutting Force | 100ton, 200ton, 300ton, 450ton, according to customers' requirement |
| Working Table Size | 1250x1000mm, 1600x1000mm, 2000x1000mm, according to customers' requirement |
| Max Material Width | 1500mm, 1600mm, according to customers' requirement |
| Automatic Feeding Method | Automatic conveyor belt feeding, automatic sliding feeding table/double side auto feed, according to customers' requirement |
| Lamination Function | Laminating wide adhesive tape rolls or tape strips rolls is optional |
| Voltage | 220v, 380v, Customizable |
| Control system | PLC |
| Varieties |
a. With or without heating b. With or without lamination function c. Various die mould fixture designs available |
heat seal cutting machine Application
Kuntai Group
- ✓ Automotive interior
- ✓ Leather and leather goods–shoe uppers, wallets, purses, belts
- ✓ Clothing–components for hats, ties, collars, shoulder pads
- ✓ Cork gaskets and mats
- ✓ Foam and sponge
- ✓ Footwear components–shoes, insoles, insole socks, uppers, straps
- ✓ Rubber–gaskets, seals, washers
- ✓ Textiles–sample swatches and pattern books, underwear and outerwear components, hats, ties
- ✓ Toys–soft toys, advertising novelties, mini jig-saw puzzles, etc.
Heat Seal Cutting Machine Packaging And Shipping
Kuntai Group- ◆ Machines well packed with protective film and loaded with export container;
- ◆ One-Year-Period spare parts;
- ◆ Tool kit
Above infos are only symbolic. No responsibility is accepted for the accuracy of given information. All machines details will need to be discussed and confirmed before production as per specific application requirements.
Contact us
We are a leading manufacturer of coating lamination machines, cutting machines and other materials finishing machines, pls kindly let us know your details requirements.
Frequently Asked Questions (FAQ)
What materials can the Kuntai heat seal cutting machine process?
Our machine is designed to cut and heat seal Thinsulate, nonwoven fabrics, insulation materials, foams, sponges, rubber, gaskets, leather, and various textiles used in the automotive and apparel industries.
What feeding options are available for the heat seal cutting machine?
We offer three main feeding methods depending on your material size and production flow: Manual Feeding, Auto Sliding Feeding Table, and Auto Conveyor Belt Feeding.
Can the machine perform lamination and cutting simultaneously?
Yes. Customers can opt for the lamination function, which allows the machine to laminate wide adhesive tape rolls or tape strips, realizing laminating, cutting, and heat sealing in one continuous, nonstop process.
How customizable are the technical specifications?
We offer full customization. You can choose the cutting force (100t to 450t), working table dimensions, maximum material width, lamination configurations, and custom electrical voltages (220V/380V) to match your manufacturing setup.
What is the memory function of the machine?
The machine features a built-in memory system through the PLC. It stores material feeding data and cutting mould serial numbers, making it easy to recall previous job settings for faster changeovers in the future.
