UD Prepregs Impregnation Machine for High Productivity
UD Impregnation Production Line

UD Prepregs Impregnation Machine for High Productivity

UD fabric prepreg machine (2).jpg
UD FABRIC PREPREG MACHINE 5.jpg
UD FABRIC PREPREG MACHINE.jpg
IMPREGNATING MACHINE 3.jpg
IMPREGNATING MACHINE.jpg

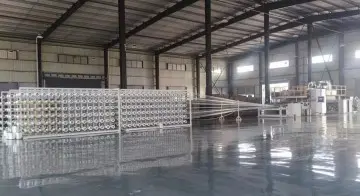

The UD prepregs impregnation machine made by Kuntai is widely used for the production of UD prepregs for the technical textiles industries, such as defense industry. Kuntai's production UD prepregs production line is very stable, productive and cost saving. The impregnation level is high due to easy penetration of the resin in the fibers. Kuntai's unique fiber spreading device makes better uniformity possible and Kuntai's precise impregnating device makes resin quantity control precise and stable.

    MORE DETAILS AND CUSTOMIZATION
    UD prepregs IMPREGNATING machine description
    Kuntai Group
    UD prepregs impregnation machine is to prepreg strong UHMWPE which has the lightest weight and specific gravity, consisted of ultra-high strength and high modulus polyethylene fibers or Aramid fibers.
    Kuntai UD prepregs impregnating machine uniformly places the fibers and spreads them as per final product target requirements and precisely impregnates or coats it with resin as per different application requirements and then laminate with film carrier.
    Afterwards, Kuntai can provide you with 2UD heat pressing laminating machine or 2UD/4UD crossply machines and other auxiliary equipments, like automatic UD fabric sheets cutting machine, UD prepregs edge cutting machine, UD fabric inspection machine, etc.
    UD PREPREGS IMPREGNATING MACHINE AUXILIARY EQUIPMENTS
    Kuntai Group
    1.UD Fabric O Degree/90 Degree Orthogonality Pressing Laminating Machine
    2. Automatic UD Prepregs Sheet Cutting Machine
    3. Crossply Machine
    4. UD Fabric Edge Cutting Machine
    5. UD Fabric Inspection Machine

    other supporting machines

    Accessories
    Option

    01020304050607080910
    ud Prepregs impregnating Machine Features
    Kuntai Group
    Fibre-Unwinding-Spreading-Impregnation-Lamination-with-Carrier-Heating-Drying-Accumulating-Rewinder-80ii
    Automatic-Impregnation-Lamination-Line-For-Various-Applications-14kk
    Fibre-Unwinding-Spreading-Impregnation-Lamination-with-Carrier-Heating-Drying-Accumulating-Rewinder-107ma
    Automatic-Impregnation-Lamination-Line-For-Various-Applications-21cx
    Automatic-Impregnation-Lamination-Line-For-Various-Applications-32mn
    0102030405
    1. The UD prepregs impregnating machine adopts stable mechanical operation rollers and special-shaped devices to spread the fibre uniformly, impregnate or coat with resin glue and lamination with the carrier PE film, dry and solidify, and then go through the 0/90º orthogonal lamination or crossply machine in the back. The product has excellent properties such as low density, abrasion resistance, impact resistance, and strong cutting resistance.
    2. The equipment uses resin adhesives to produce non-weft fabrics.
    3. With HMI+PLC control system for easy operation, double rolls rewinder for high production efficiency, replacing the tedious operation.
    4. The mirror surface processing rollers are used for fibre pulling and fibre laying to ensure that the damage to the fiber performance is reduced to the greatest extent during the operation.
    5. The machine adopts gear transmission, which has strong torque transmission and stability.
    6. Drying roller uses external oil boiler, which provides stable and uniform heating for the forming of UD prepregs.
    ud prepregs impregnating machine Technical Parameters (Customizable)
    Kuntai Group
    Machine roller width 1800mm
    Max material width 1650mm
    Gluing method Impregnating or Coating
    Spreading method Mechanical multi-roller+special shaped
    Control mode HMI+PLC
    Drive control Variable frequency drive
    Heat source mode Oil heater
    Temperature control method Module
    Roller surface treatment Mirror surface of the friction roller of the whole machine
    Dynamic balance Mirror roller heating roller of the whole machine
    Total power 90kw
    Lamination speed 3-11m/min
    PLC Brand Mitsubishi
    Main Motor Brand Siemens
    Inverter Brand Yaskawa
    Electrical Parts Brand Schneider/Omron
    Temperature Control Brand Fuji
    ud prepregs impregnating machine Application
    Kuntai Group
    Application and Usage of UD Prepregs
    - Space and Air craft (aerospace) structure and parts
    - Blades for wind turbines
    - Automotive parts and components
    - Recreational sports equipment
    - Industrial structure and parts
    - Military
    - Civil and Building Reinforcement
    product-3-2gru
    APPLICATION-2d44
    APPLICATION-3wmw
    APPLICATION-4lwf
    APPLICATION-54ud
    APPLICATION-6555
    Packaging And Shipping
    Kuntai Group

    UD Prepregs Impregnating Machine Inner Package: Protective Film, Plywood Case, etc .
    UD Prepregs Impregnating Machine Outside Package: Export Container
    ◆ Machines well packed with protective film and loaded with export container;
    ◆ One-Year-Period spare parts;
    ◆ Tool kit

    packing-1204
    packing-20as
    packing-1ic3
    packing-2bgd
    packing-5lqd
    packing-6k0s
    packing-37fp
    packing-482v
    0102030405060708

    Above infos are only symbolic. No responsibility is accepted for the accuracy of given information. All machines details will need to be discussed and confirmed before production as per specific application requirements.
