UHMWPE UD usually refers to Unidirectional Ultra High Molecular Weight Polyethylene fabric, which is a reinforcing material made by aligning Ultra High Molecular Weight Polyethylene fibers in a single direction in parallel.

Basic Definitions

UHMWPE UD =Ultra-High Molecular Weight Polyethylene Unidirectional Fabric

UHMWPE: Ultra-high molecular weight polyethylene fiber (molecular weight 1 million to 6 million), one of the world's three high-performance fibers, with the highest specific strength and the lowest density.

UD: Unidirectional, unidirectional layup - fibers are arranged in parallel along the same direction and fixed with resin.

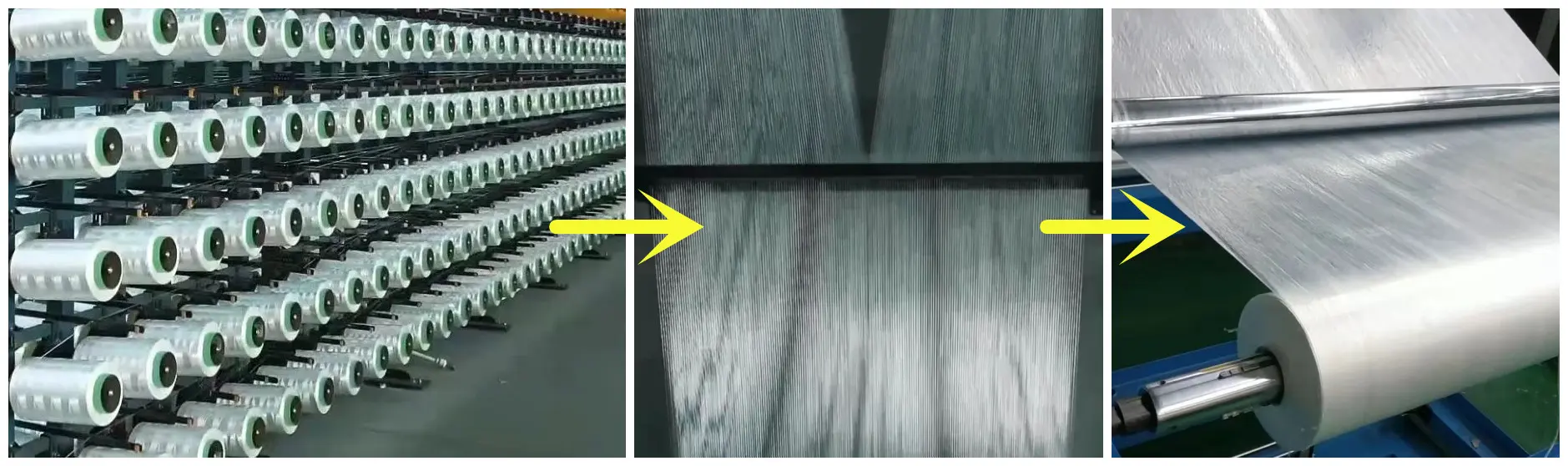

UHMWPE Fibre to Fabric.jpg
Core Performance (Strongest Selling Point)

1）Ultra-high specific strength: Under the same weight, its strength is 15 times that of steel and about 40% higher than that of aramid (Kevlar).

2) Extremely lightweight: with a density of 0.97 to 0.98 g/cm³, it can float on water. It is the preferred lightweight material in bulletproof and aerospace fields.

3) Impact-resistant/ballistic protection: With high fracture energy and strong energy absorption, it is a mainstream ballisticproof material. It is often used in bulletproof vests and stab-resistant clothing.

4) Chemical resistance / low-temperature resistance / wear resistance: Resistant to acids and alkalis, remains tough at -196℃, and has wear resistance far exceeding that of ordinary plastics. Good self-lubricating property.

Disadvantages: Not resistant to high temperatures (≤80℃), flammable, and not resistant to ultraviolet rays.

Structure and Production

Unidirectional parallel placement of fibers → Resin impregnation → Drying → Formation of UD sheet material

Multi-layer cross-laminated (0°/90° alternating) → Made into bulletproof composite plates/soft bulletproof vests

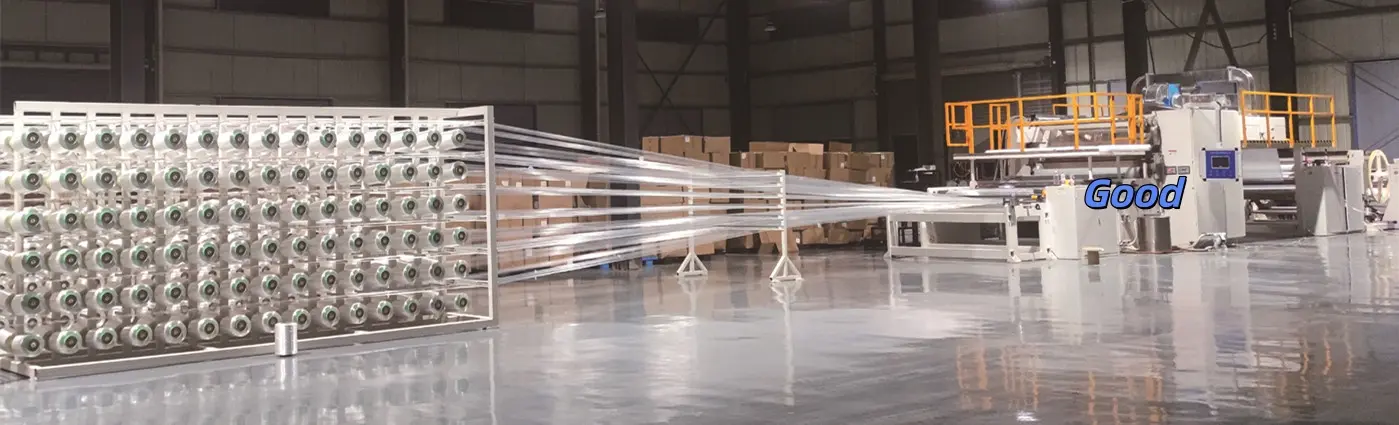

UHMWPE UD Fabric Prepreg Machine.jpg
Main Application
  • Bulletproof protection: bulletproof vests, helmets, vehicle/ship armor, blast-resistant plates (the most mainstream)
  • Safety protection: Cut-resistant gloves, stab-resistant vests, industrial wear-resistant linings
  • Marine/Industrial: High-strength cables, deep-sea ropes, conveyor belts, wear-resistant components
  • Aviation/Sports: Lightweight structural components, snowboards, fishing lines, rowing boat parts
Comparison with Aramid UD
  • UHMWPE UD: lighter, higher strength, better water and chemical resistance; not heat resistant, not UV resistant.
  • Aramid UD: Better heat resistance (about 200℃) and UV resistance; heavier, slightly lower strength, and slightly higher moisture absorption.
Usage Notes
  • Surface inertness: The fiber surface is smooth and has weak bonding force with resin. Usually, plasma treatment or coating with a special coupling agent is required to enhance the interfacial bonding strength.
  • Processing temperature: During hot-pressing, the temperature must be strictly controlled to prevent fiber melting or performance degradation.
