Cutting Machine

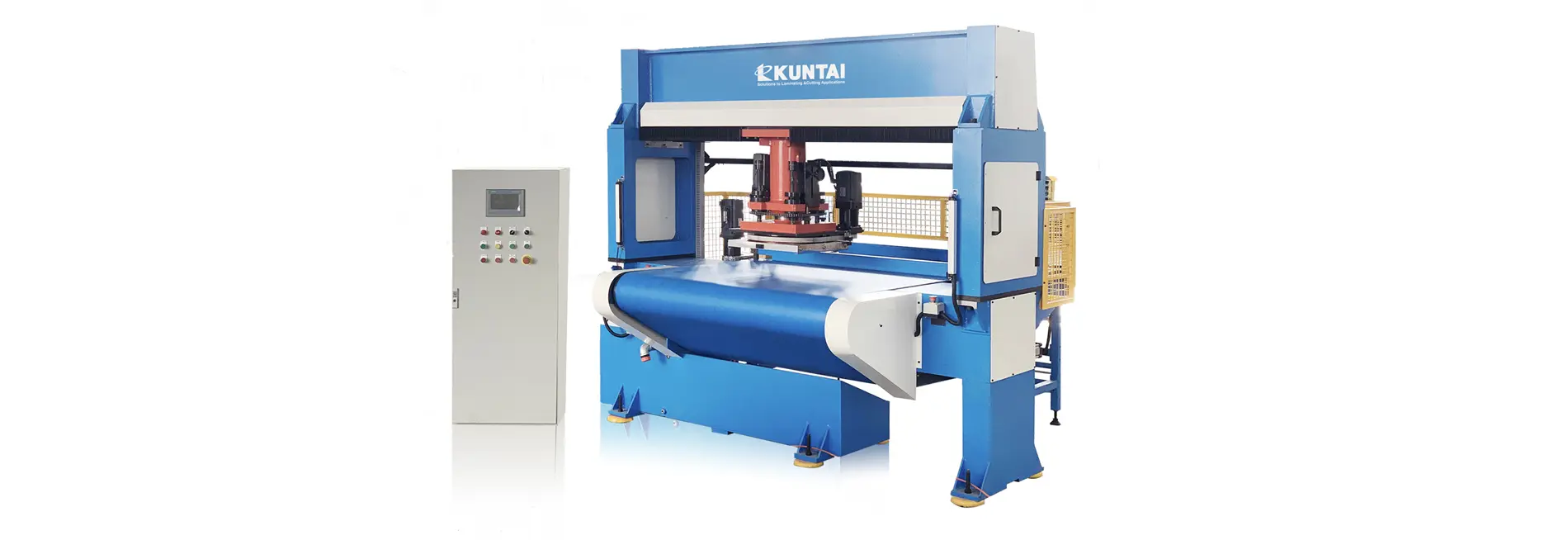

automatic abrasive cutting machine description
Kuntai Group

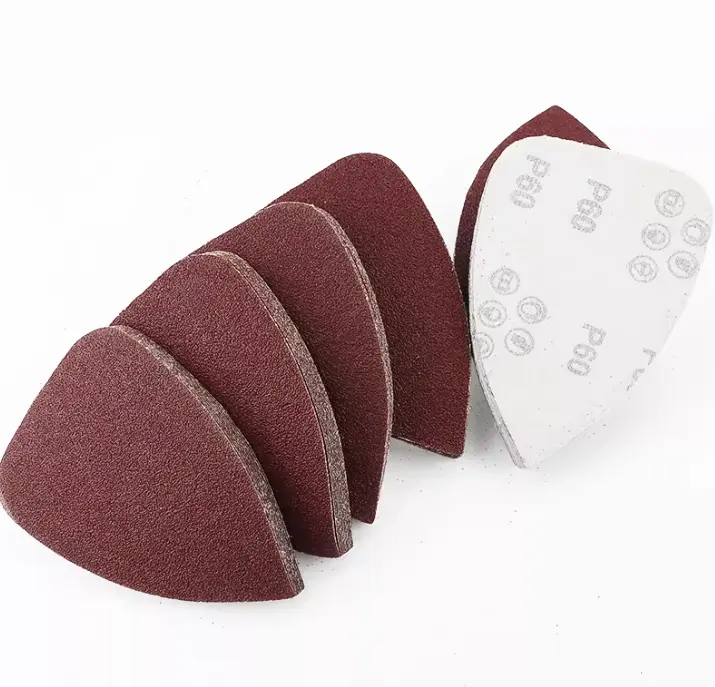

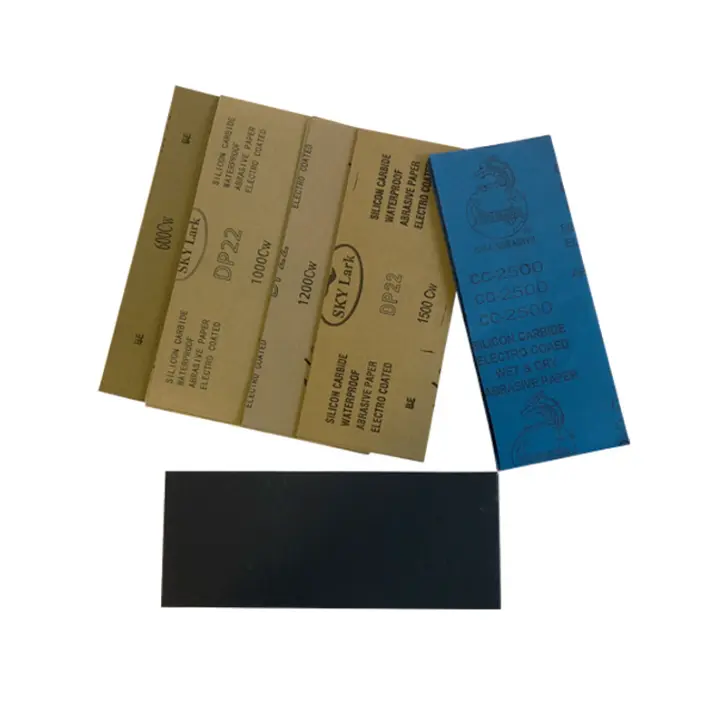

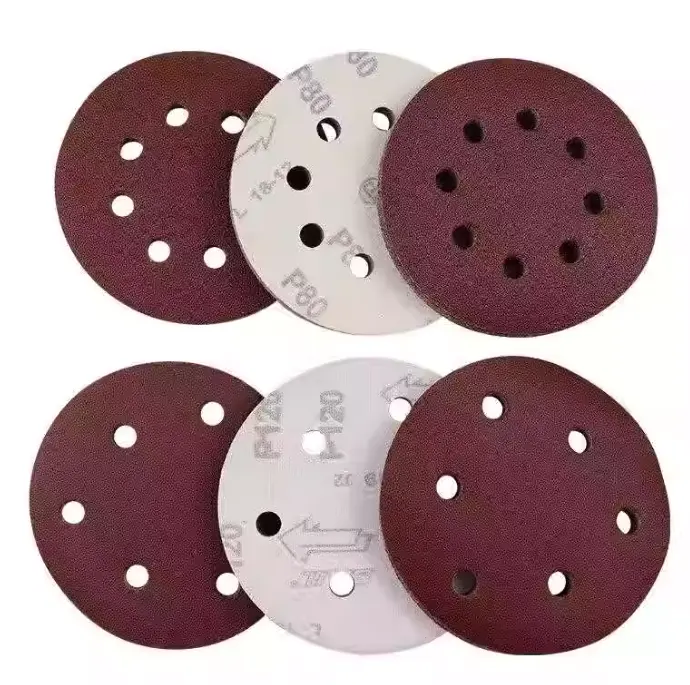

In the current market, there are many types of abrasive papers, such as sponge abrasive paper, dry abrasive paper, waterproof abrasive paper, dust free mesh abrasive paper and so on.
For different types of abrasive papers with different mesh types and different customers specific abrasive rolls width, weight, thickness and different cutting operation requirements, Kuntai designs and manufactures a wide range of abrasive cutting machines both automatic and manual.

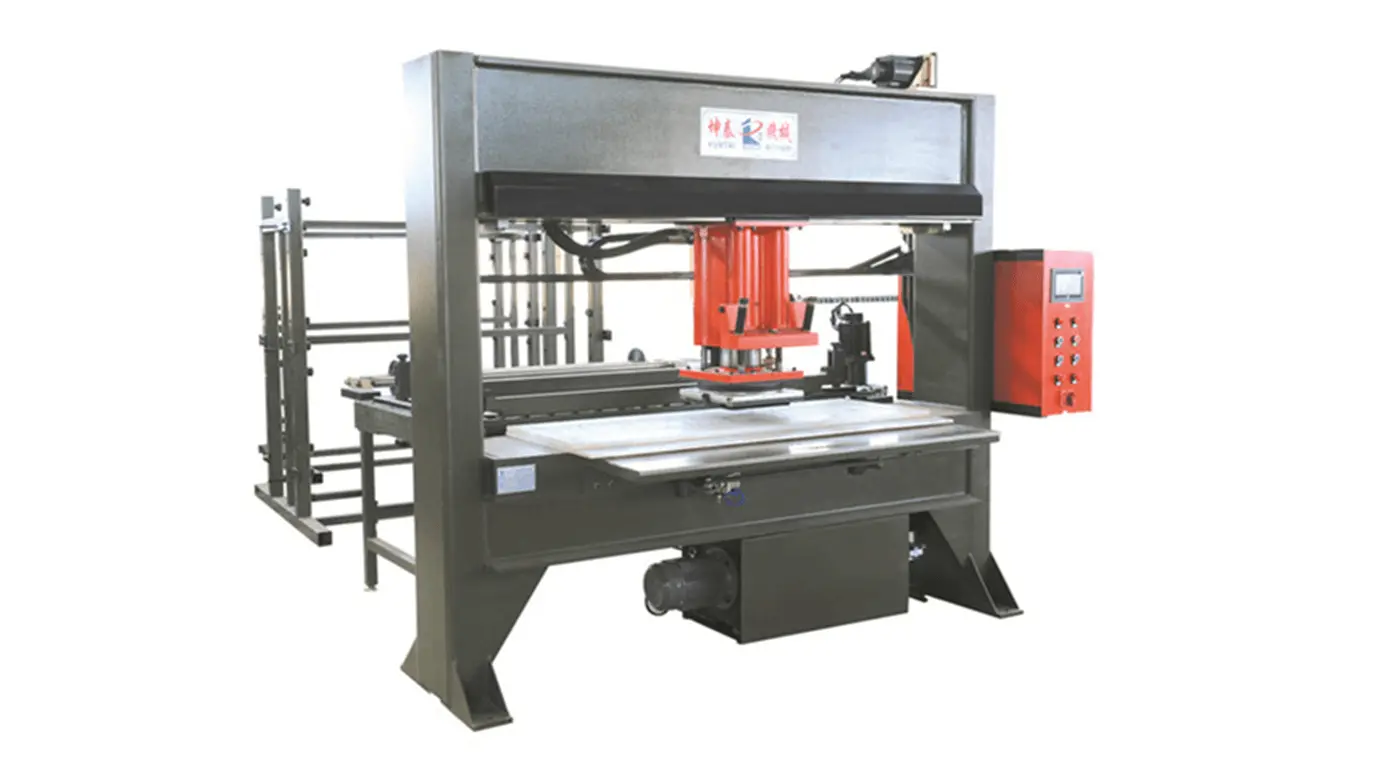

● Automatic abrasive cutting machine with sliding feeding table: suitable for cutting both abrasive paper in sheets and abraive paper in rolls. It is a type of relatively economic and continuous automatic abrasive cutting machine.

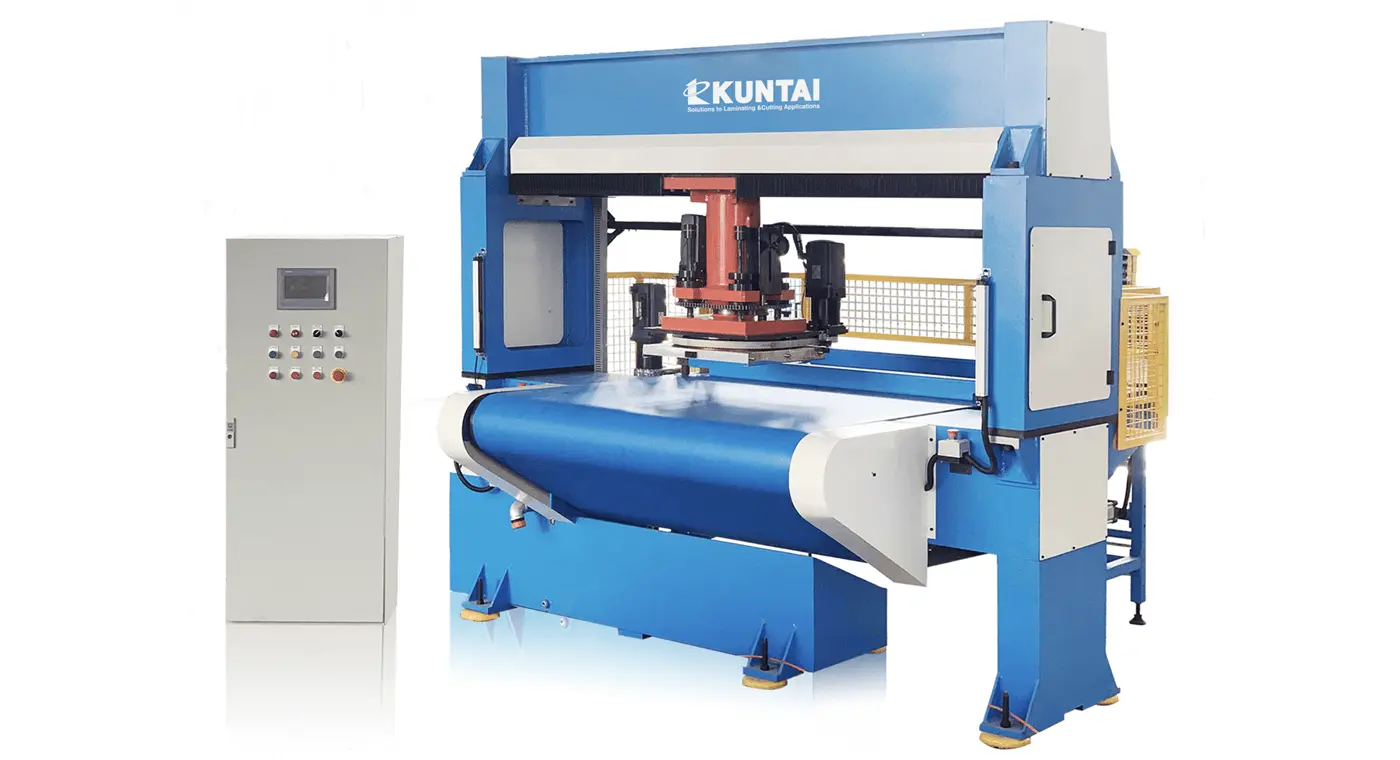

● Automatic abrasive cutting machine with conveyor belt feeding: suitable for both soft and hard abrasive papers in sheets and in rolls. It is a type of highly automatic, continuous and productive cutting machine.
● Automatic abrasive cutting machine with pitch roller/clamp feeding: suitable for some sort of rolled abraive paper cutting. It is a type of compact and easy operating automatic cutting machine.
automatic abrasive cutting machine Available Control Methods
Kuntai Group
PLC control, CNC control, etc.
AccessoriesOption
automatic abrasive Cutting Machine Features
Kuntai Group
0102030405

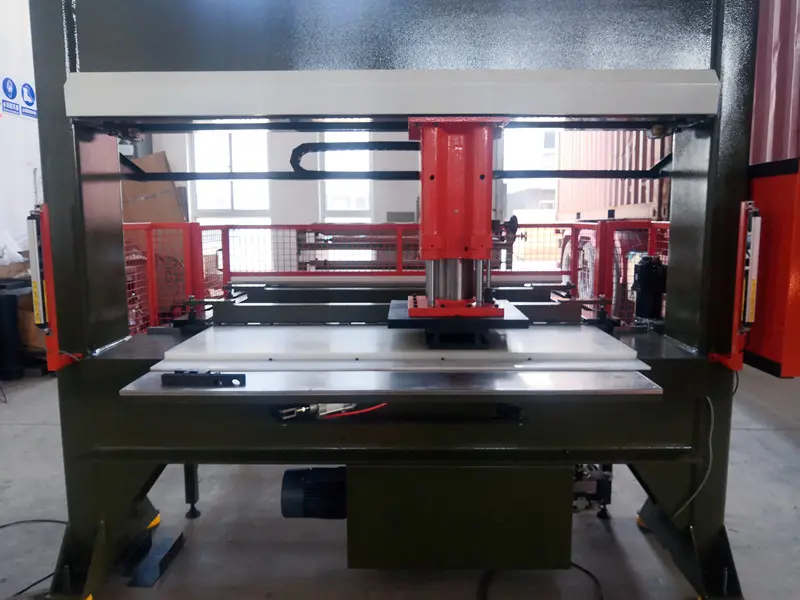

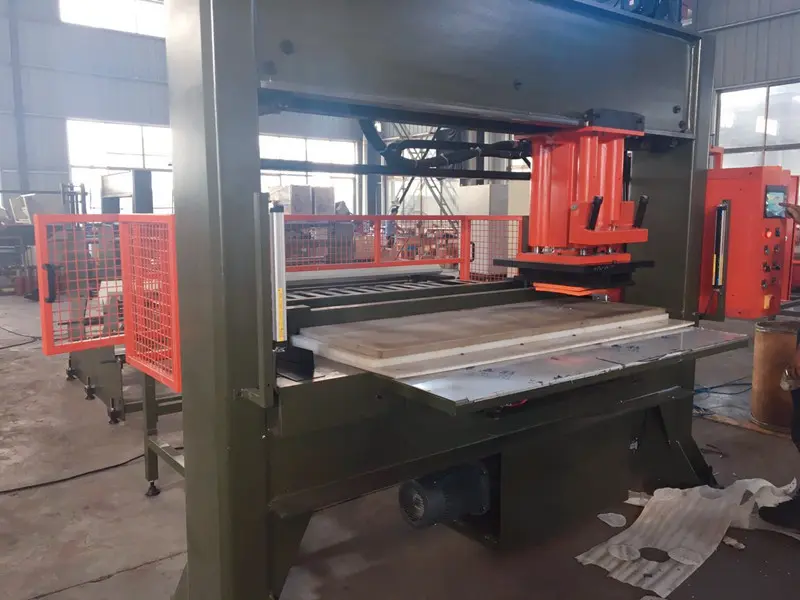

● Gantry structure and four column type travel head cutting machines are available for choice.
● Travel head can rotate to make better use of materials. Also automatic layout system can be applied for saving abrasive materials and labor.
● Servo motor is adopted for the travel head so that its movement distance is precisely the same as what is preset.
● The micro movement feature of the cutting board prolongs service life of the abrasive cutting machine.
● Auto pitch roller/ clamp feeding, automatic conveyor belt feeding and auto sliding feeding table system use servo motor so that the abrasive paper feeding length is precisely the same as what is preset. Several layers of abrasive paper can be feed and cut precisely at the same time.
● High quality hydraulic oil pump of famous brand produces very low noise.
● Flywheel energy storage tech helps realize high pressure cutting, saving power. The oil temp will not rise.
● Hydraulic valve is straight way valve, enhancing cutting precision.
● This machine can be highly automatic, providing high productivity.

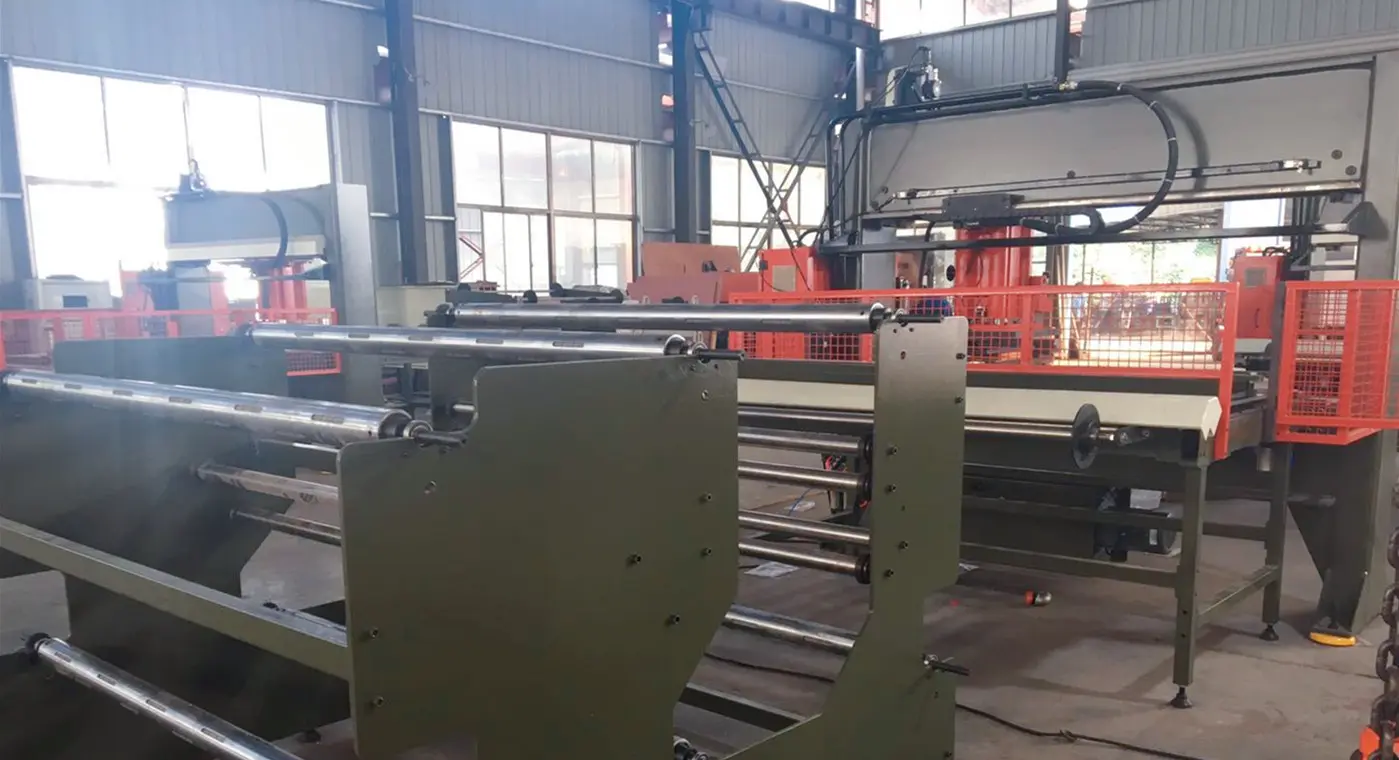

● Different specially designed multi- rolls unwinder frames available for different abrasive rolls feeding and cutting, considering the sticking issue of layers abrasive papers.
● The machine has memory function. For the cutting moulds, the abrasive paper feeding data, travel head movement data can be stored and recalled. In future, just input the cutting mould serial number, the machine will recall previous data and work accordingly.
automatic abrasive Cutting Machine Technical Parameters (Customizable)
Kuntai Group
| Max Cutting Force | 25ton, 30ton,35ton, 40ton, 50ton, 120ton, according to customers' requirement |
| Travel Head Size | 400x400mm, 500x500mm, 650x650mm, 1000x1000mm, according to abrasive paper product die mould sizes |
| Max Abrasive Paper Width | 1450mm, 1500mm, 1600mm, 2000mm, according to customers' requirement |
| Automatic Feeding Method | Auto pitch roller/clamp feeding, automatic conveyor belt feeding, automatic sliding feeding table, according to customers' requirement |
| Unwinder Frame | For one roll, three rolls, six rolls, 10 rolls, customizable |
| Voltage | 220v, 380v, Customizable |
| Control system | PLC/CNC |
| Varieties |
a. With or without abrasive paper hole waste removal device b. Rotating head or not c. PLC or CNC control d. Various die mould fixture designs available |
automatic abrasive Cutting Machine Application
Kuntai Group
Apart from cutting abrasive paper, this type of travel head die cutting machine is also widely used for cutting of various nonmetal materials, such as PVC film, artificial leather, ball panels, shoes materials, foam, eva, toys and so on.
It is widly used in many industries, such as:
✓ Automotive interior
✓ Abrasives, abrasive paper
✓ Leather and leather goods–shoe uppers, wallets, purses, belts
✓ Clothing–components for hats, ties, collars, shoulder pads
✓ Cork gaskets and mats
✓ Foam and sponge
✓ Footwear components–shoes, insoles, insole socks, uppers, straps
✓ Rubber–gaskets, seals, washers
✓ Textiles–sample swatches and pattern books, underwear and outerwear components, hats, ties
✓ Toys–soft toys, advertising novelties, mini jig-saw puzzles, etc.
automatic abrasive Cutting Machine Packaging And Shipping
Kuntai Group
Inner Package: Protective Film, etc .
Outside Package: Export Container
◆ Machines well packed with protective film and loaded with export container;
◆ One-Year-Period spare parts;
◆ Tool kit
