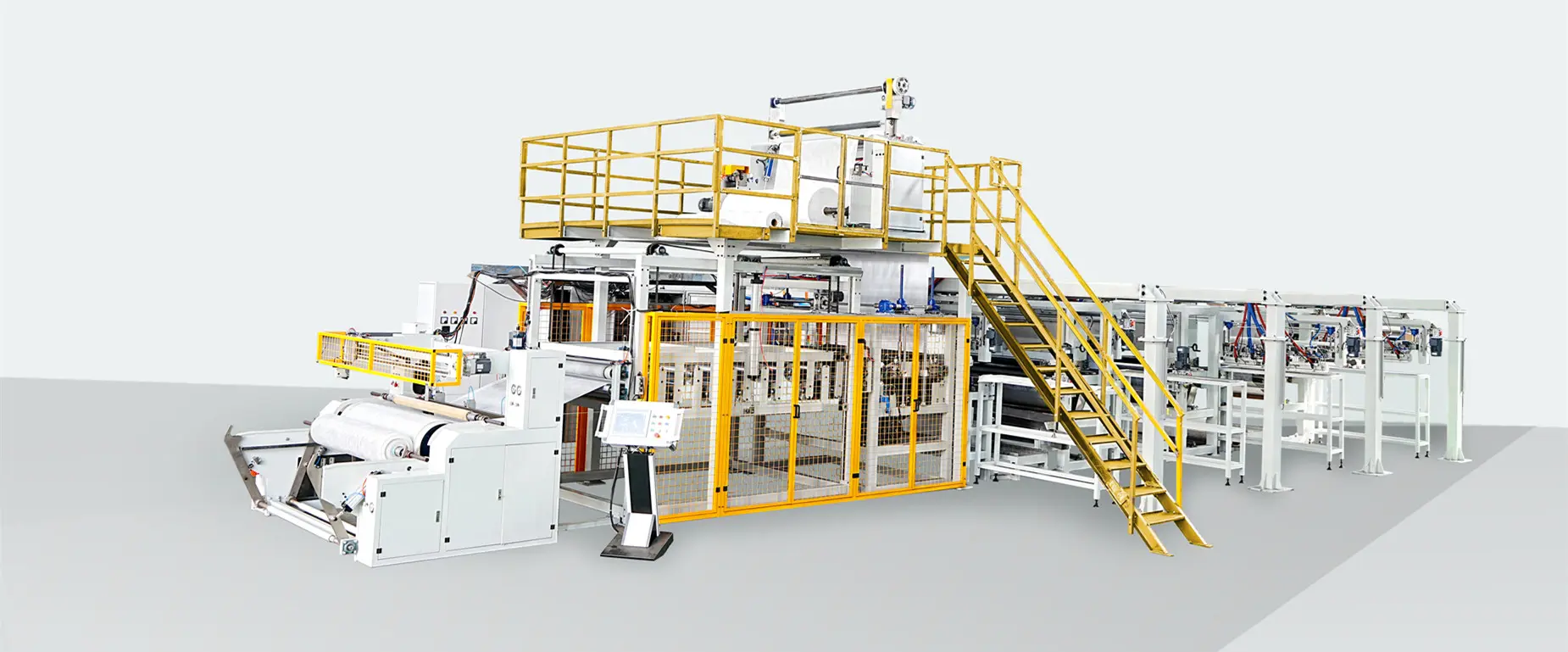

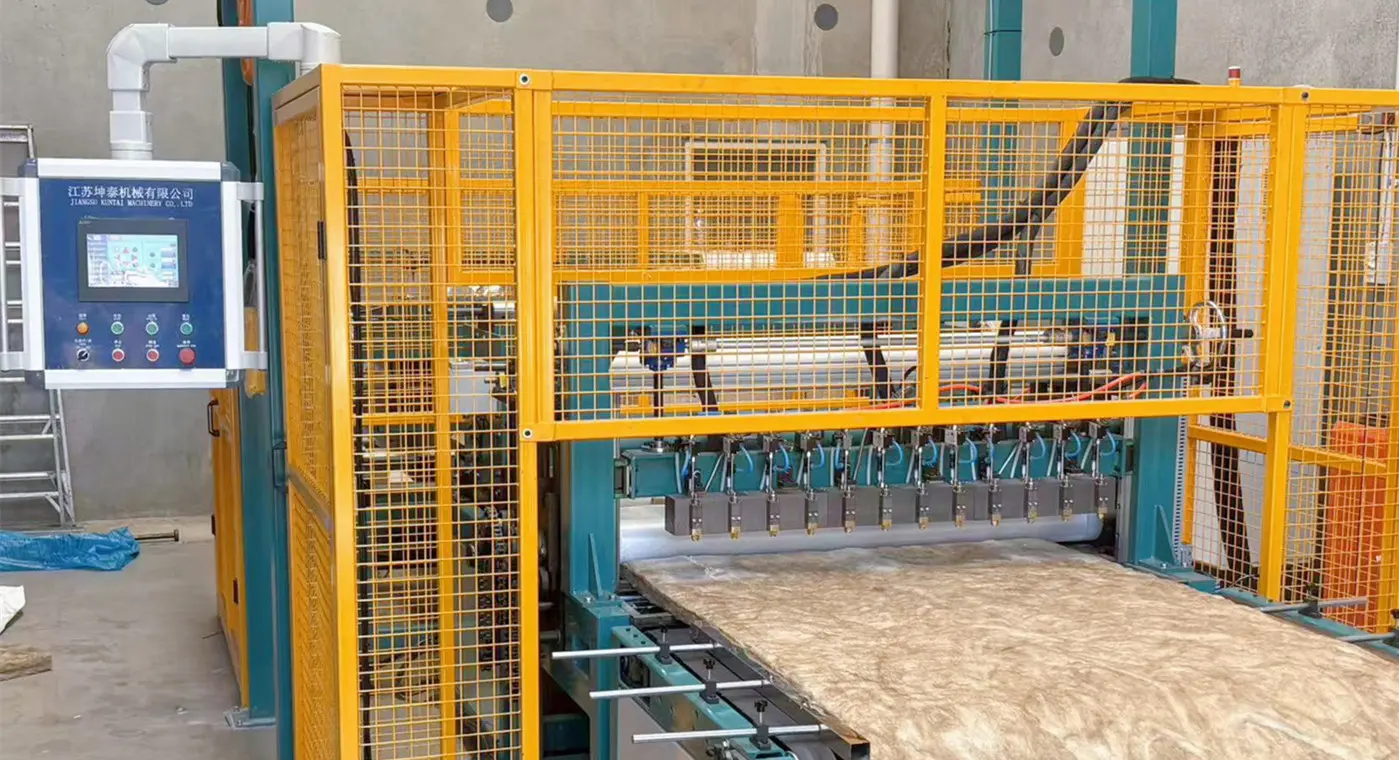

Glue Spray Lamination Machine
Advanced glue spray Lamination Machine description
Kuntai Group
In terms of glue/adhesive type, there are generally water based glue spray lamination machine, solvent based glue lamination machine and hot melt PUR glue spray lamination machine. Different types of glue requires different types glue spray nozzels and related laminating systems.
1. Water based glue spray lamination machine sprays water based glue to laminate materials together and the final product is not water washable.
2. Solvent based glue spray lamination machine sprays solvent based glue. Because solvent based glue has smell and it is not healthy and not environmentally friendly, in most cases, it is replaced by water based glue spray lamination machine or hot melt glue spray lamination machine.
3. Hot melt glue spray lamination machine is the most popular type of glue spray lamination machine due to the fact that hot melt glue is healthy and environmentally friendly and its bonding strength can meet various lamination application requirements. Various types of hot melt glue can be used, such as hot melt PUR glue, hot melt EVA glue and so on. Different types of hot melt glue requires different types of hot melt glue melting system.
2. Solvent based glue spray lamination machine sprays solvent based glue. Because solvent based glue has smell and it is not healthy and not environmentally friendly, in most cases, it is replaced by water based glue spray lamination machine or hot melt glue spray lamination machine.
3. Hot melt glue spray lamination machine is the most popular type of glue spray lamination machine due to the fact that hot melt glue is healthy and environmentally friendly and its bonding strength can meet various lamination application requirements. Various types of hot melt glue can be used, such as hot melt PUR glue, hot melt EVA glue and so on. Different types of hot melt glue requires different types of hot melt glue melting system.
advanced Glue Spray Lamination Machine Applicable adhesives
Kuntai Group
Hot melt PUR/EVA/, Water based glue, Solvent based glue, etc.
AccessoriesOption
advanced glue spray laminating Machine Features
Kuntai Group
010203040506
● The temperature is controlled by intelligent digital display temperature control instrument. The temperature difference is less than +-2 celcius degree. The operation panel design is humanized and easy to operate.
● Motor speed adjustment within all processes, temperature can
be independently set and adjusted.
● Equipped with motor 0-10V tracking input, motor parameter
adjustment function, and automatic tracking of production line
speed.
● Well-known brand electrical parts will be used.
● Touch screen human-machine interface, user-friendly
operation, with Chinese English switching interface function, Chinese English interface
● Built in customizable sets of independent measurement, independent
adjustment, automatic tracking of line speed adhesive volume.

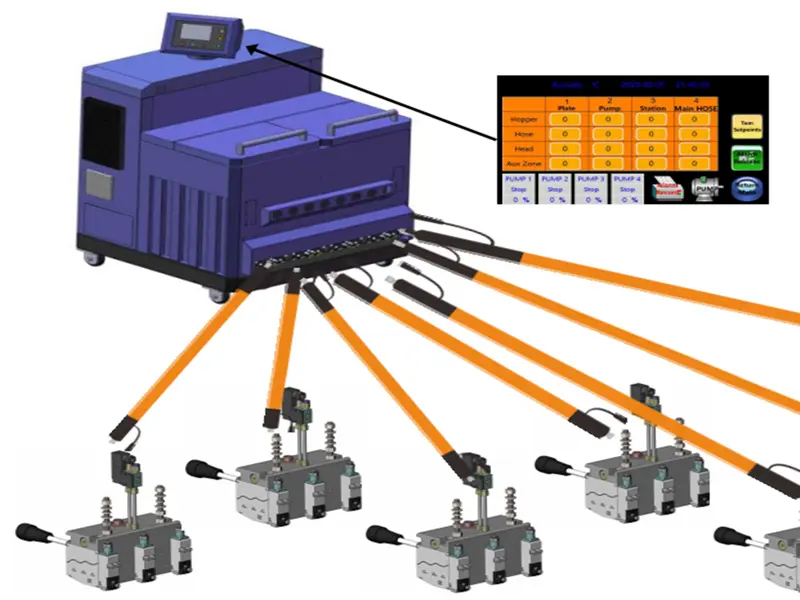

● The main system controls the heating
settings of the pump, spray gun, and pipe.
● NI120 temperature sensor system (consistent with
Nordson's temperature control sensor).
advanced glue spray lamination machine Technical Parameters (Customizable)
Kuntai Group
| Max Material Width | 1200mm, 1600mm, 1800mm, 2400mm, according to customers' requirement |
| Machine Roller Width | 1400mm, 1800mm, 2000mm, 2600mm, according to customers' requirement |
| Machine Speed | 3-35m/min, according to customers' requirement |
| Spraying QTY | 5-150gsm, as per customers’ requirement |
| Max Temperature | 220 celcius degree, as per customers’ requirement |
| Gap Adjustment | Servo Motor Control, customizable as per different application process |
| Melter | Hot melt PUR melter, hot melt EVA melter, available on request |
| Voltage | 220v, 380v, Customizable |
| Control system | PLC, Servo Motor |
| Varieties |
a. With or without online cutting/laminating process b. Different unwinding stands c. Different glue melting devices d. Double layers or trilayers lamination |
advanced glue spray lamination machine Application
Kuntai Group
✓ Automotive interiors
✓ Filter consumables

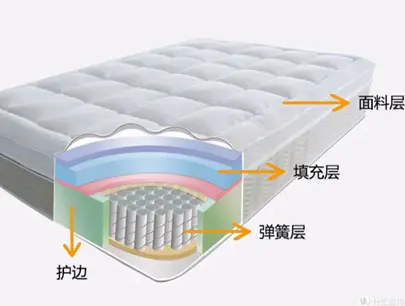

✓ Home furnishing
✓ Building roofing materials

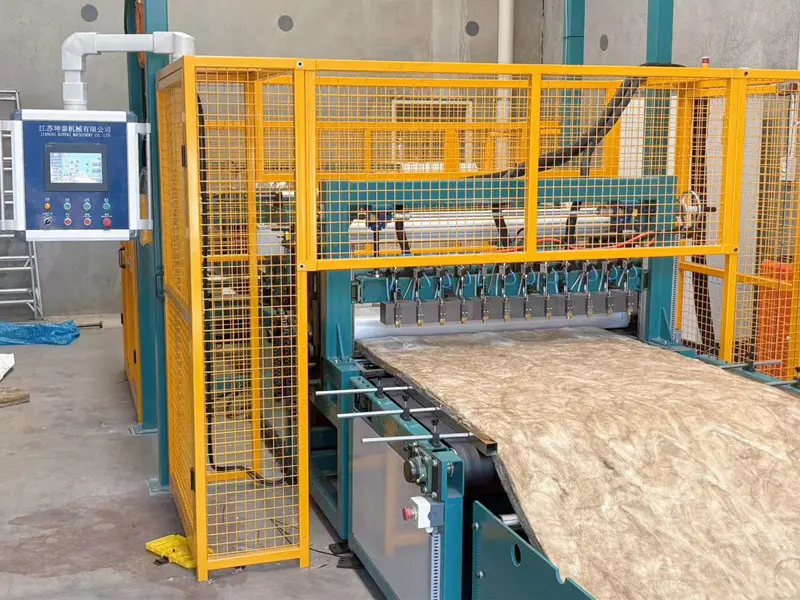

✓ Insulation industry
✓ And other industries.
advanced glue spray lamination machine Packaging And Shipping
Kuntai Group
Inner Package: Protective Film, etc .
Outside Package: Export Container
◆ Machines well packed with protective film and loaded with export container;
◆ One-Year-Period spare parts;
◆ Tool kit
