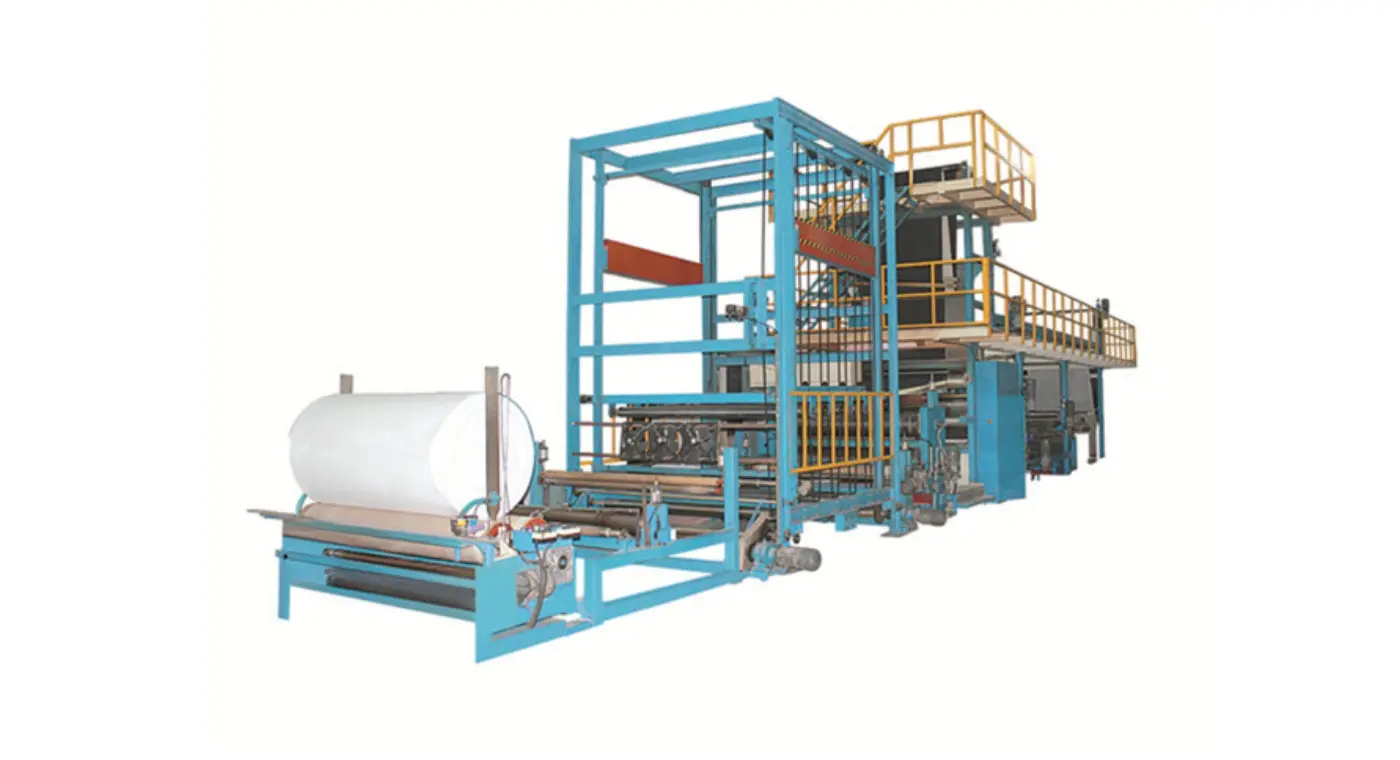

Flame Lamination Machine
advanced flame lamination machine description
Kuntai Group

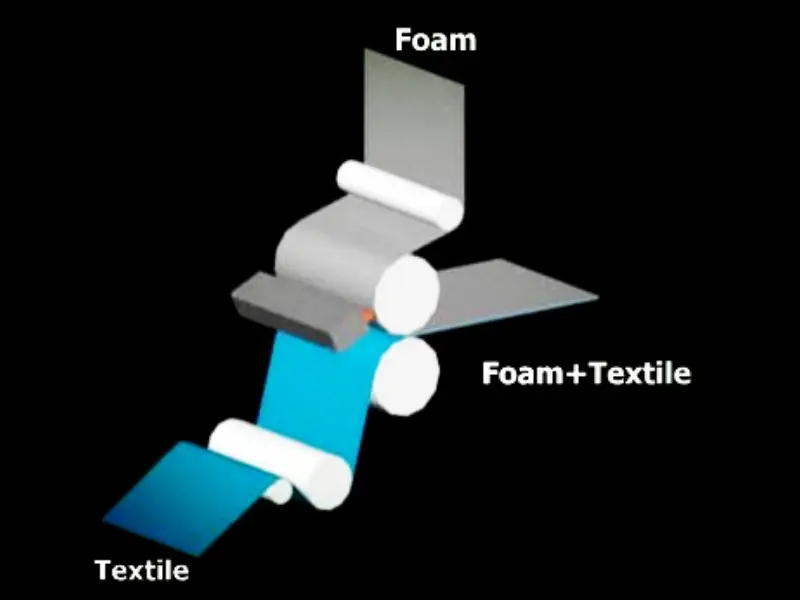

Since the very beginning of the development of laminating machine, there is flame laminating machine. Generally, there are two types of flame laminating machines: flame laminating machine for two layers of materials lamination in one step and flame laminating machine for three layers of materials lamination in one step.

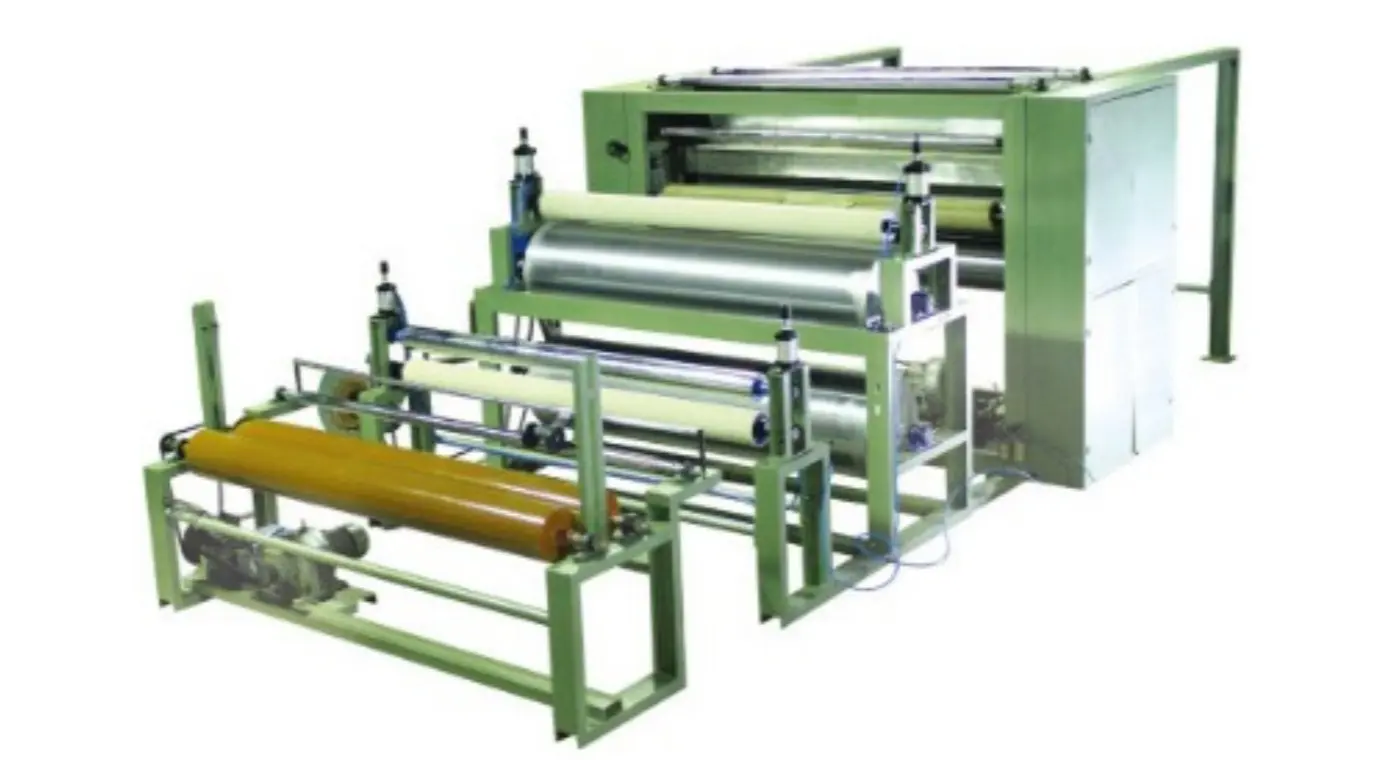

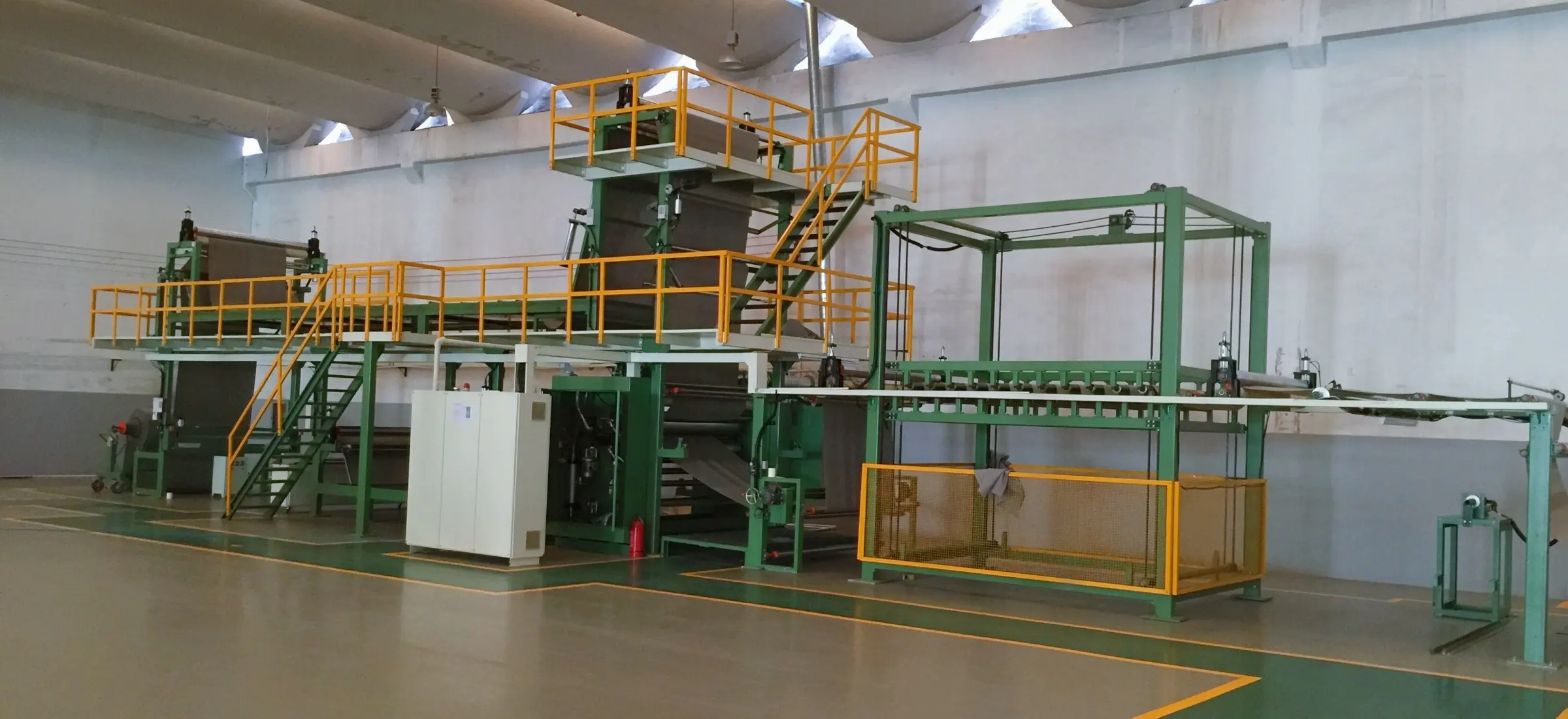

If the flame lamination machine has one burner, it can laminate only two layers of materials in one pass. If the flame lamination machine has two burners, it can laminate three layers of materials in one pass.

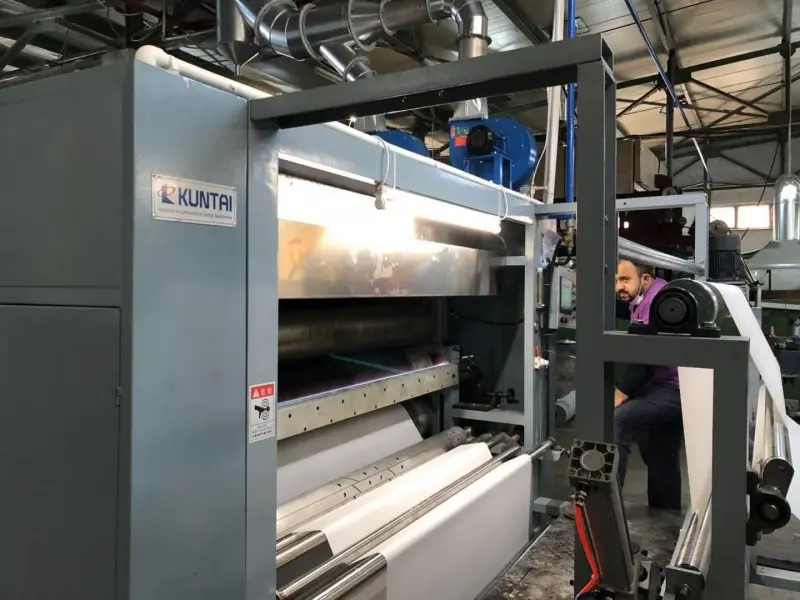

The key part of the flame lamination machine is the burner/flare roller. In China, there are mainly two types of burner/flare roller: domestic type and Korean type. Burner/flare roller quality determines the foam burning thickness, bonding uniformity and strength.

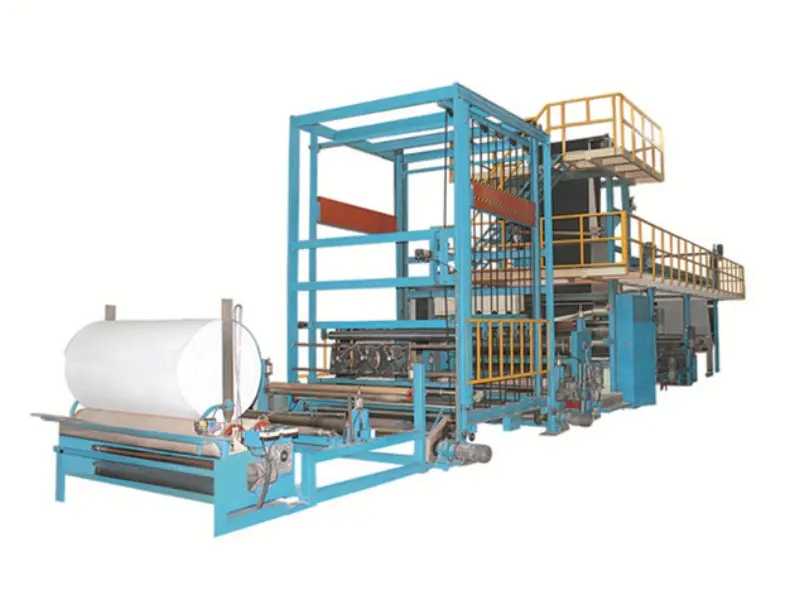

Kuntai designs and manufactures various flame lamination machines with many possible advanced devices, such as accumulator, active feeding, J-Box, conveyor belt system, foam jointing device and so on. With the suitable advanced devices installed, continuous, fast, nonstop laminating process can be achieved.
Advanced flame laminating machine possible burners
Kuntai Group

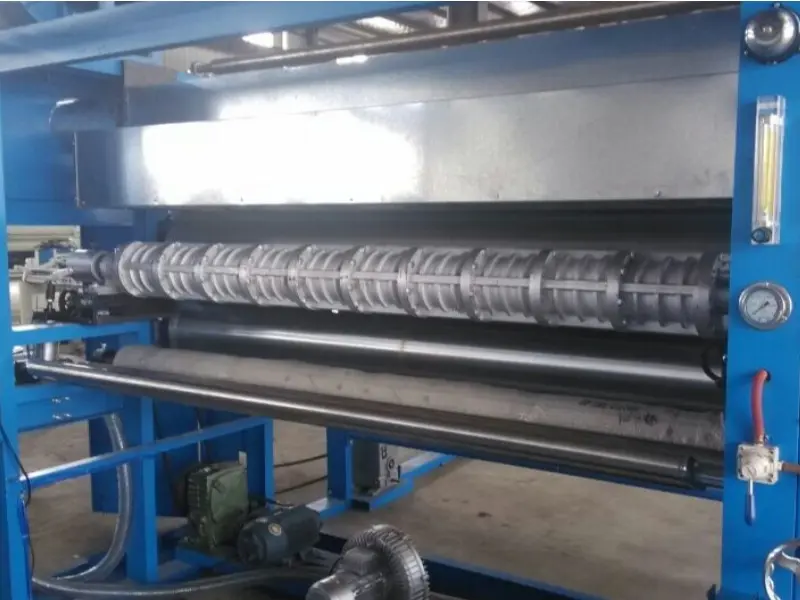

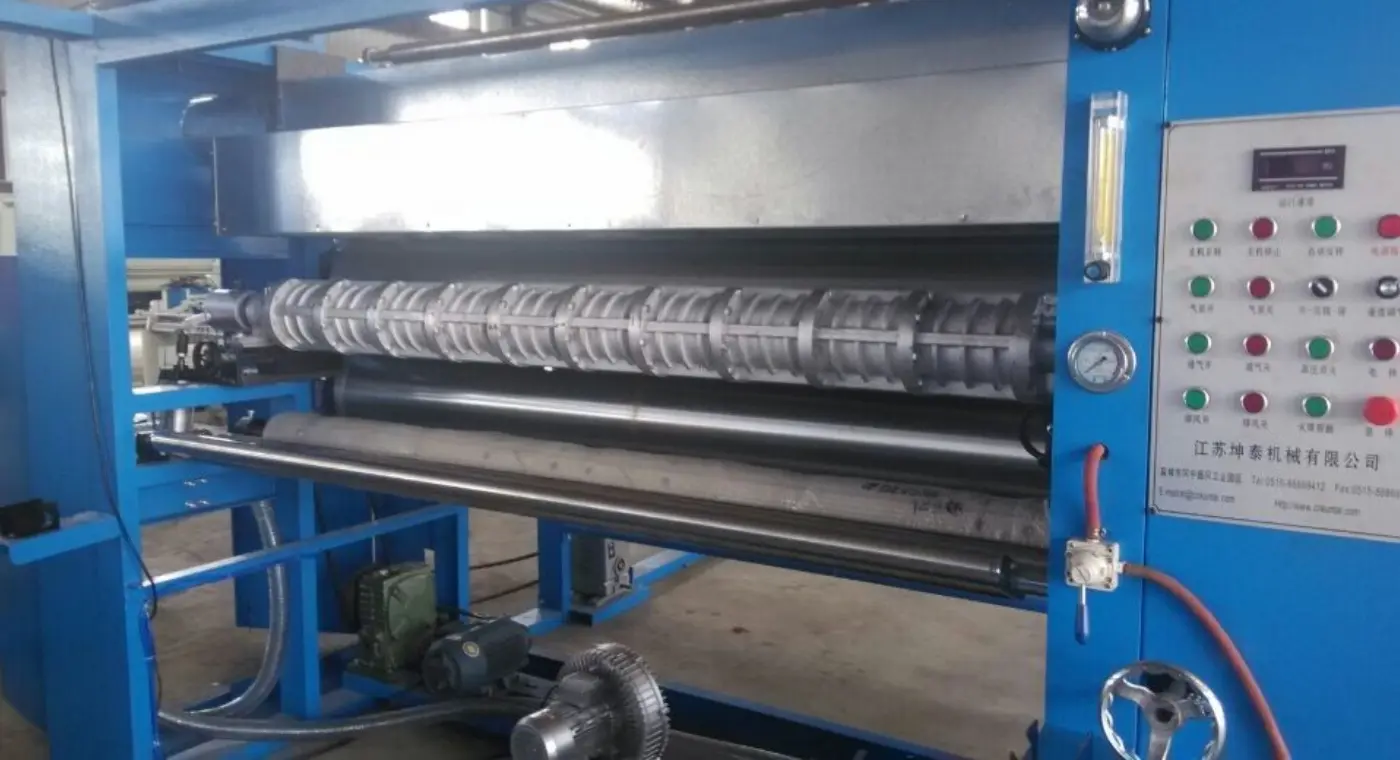

China domestic type burner or Korean imported burner
AccessoriesOption
advanced flame laminating Machine Features
Kuntai Group
0102030405
● High quality flame burner/flare roller for uniform and strong bonding.
● Compact machine structure and fast running speed.
● Low power consumption possible.
● Special feeding accumulating devices for foam and fabric are available for continuous nonstop and labor saving operation.
● Various foam jointing devices are available for choice.
● Touch screen easy operation with memory for speed and gap data.
● Raw materials saving, precise position, faster speed, stable structure
● Different openers, spreaders, centering devices are available for smooth feeding of materials during the wrinkle free lamination process.
● Higher automation
advanced flame laminating machine Technical Parameters (Customizable)
Kuntai Group
| Width | 1200mm, 1600mm, 1800mm, 2400mm, according to customers' requirement |
| Machine Speed | 5-70m/min, according to customers' requirement |
| Gap Adjustment | As per materials max thickness |
| Burner/Flare Roller | China Domestic Type or Korean Imported Type |
| Cooling Method | Cooling fan, cooling rollers, chiller, as per customers’ request |
| Machine Drive Power | 10kw, Customizable as per machine structure |
| Voltage | 220v, 380v, Customizable |
| Control system | Touch screen, PLC, servo motor, inverter |
| Varieties | a.With or without cooling device b.Different unwinding stands c.Different feeding devices d.Two burners or one burner |
advanced flame laminating machine Application
Kuntai Group
Various advantages of KUNTAI advanced flame laminating machines make possible the below applications:
✓ Home textile industry, including furniture, carpet, blanket, flooring, etc
✓ Construction, for both materials in rolls or in sheets
✓ Automotive assembly
✓ Protective safety clothes, including defence wear
✓ Insulation materials
✓ Packing industry, such as heat preservation packing
✓ Interlining for clothing and shoe industry
Packaging And Shipping
Kuntai Group
Advanced Flame Laminating Machine Inner Package: Protective Film, etc .
Advanced Flame Laminating Machine Outside Package: Export Container
◆ Machines well packed with protective film and loaded with export container;
◆ One-Year-Period spare parts;
◆ Tool kit
